FARO ARM SOFTWARE HELP

Help File Revision:  January 5, 2009





WHAT DOES THIS SOFTWARE DO?

Data Bridge for Faro Arms Software can save many hours of tedious work when you are doing capability studies with the Faro Arm.  When a Faro Arm is used to collect data for a statistical capability study, the data for each part being measured is typically saved in a separate CSV file (e.g. if 30 parts are measured there will be 30 separate CSV files).



Data Bridge for Faro Arms Software consolidates all of the CSV files from a single folder into a single Microsoft Excel Spreadsheet (each separate file is imported into a separate worksheet within the workbook).



Once in Excel, the Data Bridge FaroCSV toolbar allows the user to pick and choose which data points will be used in the statistical study.  Each data point selected for statistical analysis is copied to the “Useful Data” worksheet in the Excel Workbook.



Data on the “Useful Data” sheet can be analyzed in Excel or copied to a Statistical Software package.



REGISTRATION:

Contact Diverse Dimensions for information on registering this software.

SYSTEM REQUIREMENTS:

Requires Microsoft Excel 2000 or later.
Help Files Requires Microsoft Word 97 or later.



INSTRUCTIONS (for further instruction or training visit www.DiverseDimensions.com):
4 Easy Steps to Use:

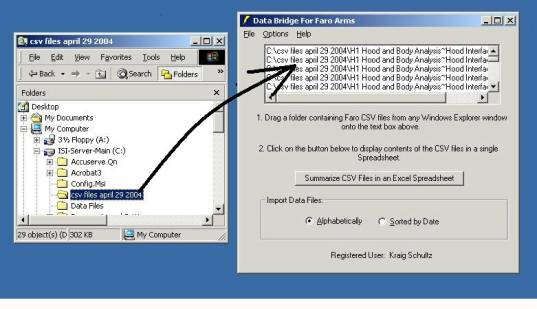

  1. Drag folder containing Faro Arm measurement files (.CSV files) onto Databridge Window.
  2. Click the "Summarize CSV files in an Excel Spreadsheet" button.

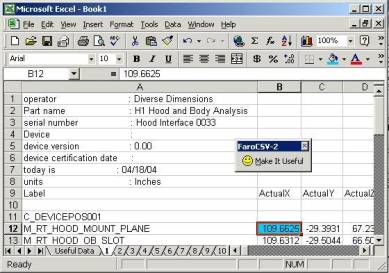

  3. In Excel, select a cell having data you want to analyze. Then click the "Make It Useful" Smiley Face toolbar Icon.
  4. Copy data into your favorite SPC software package from the "Useful Data" worksheet.
